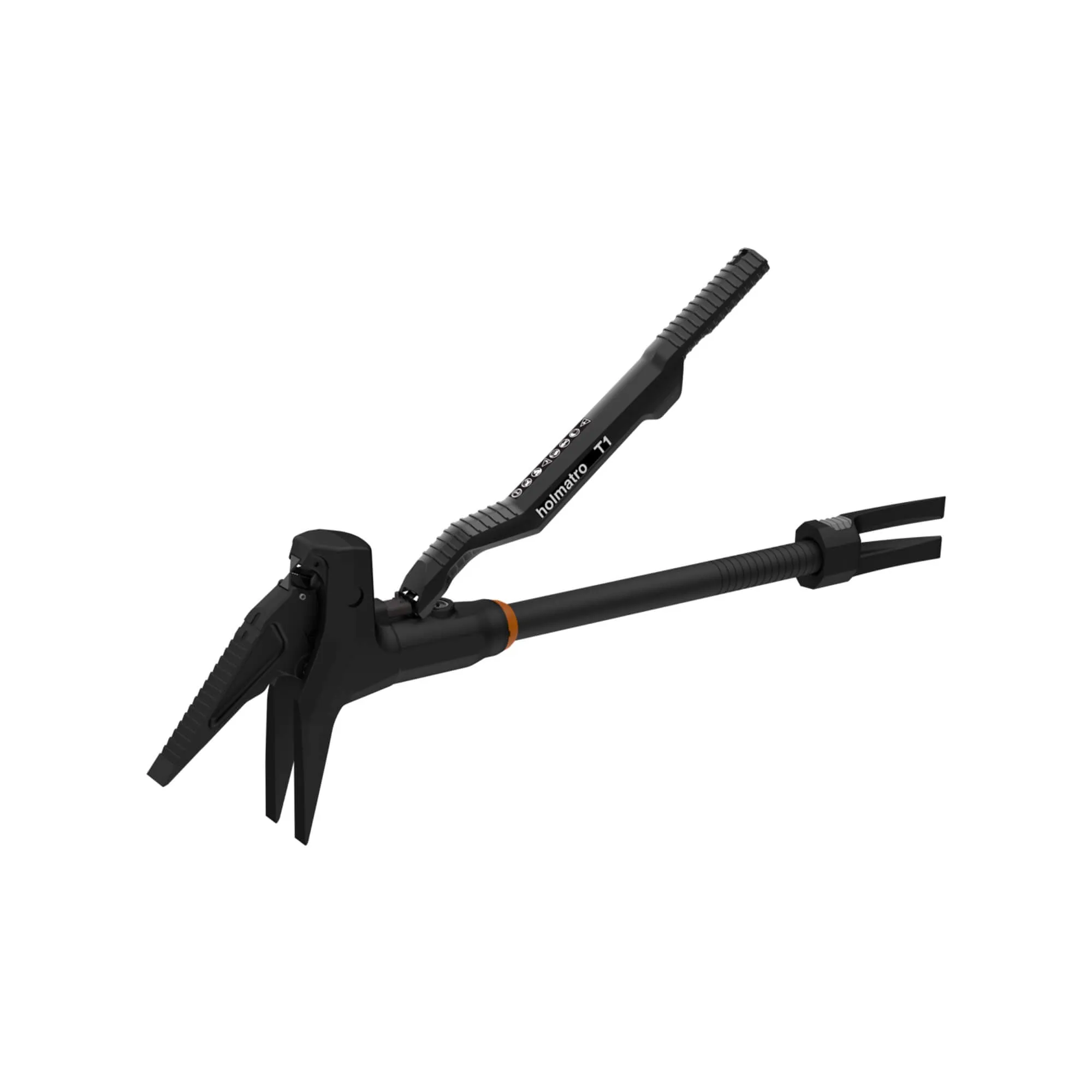

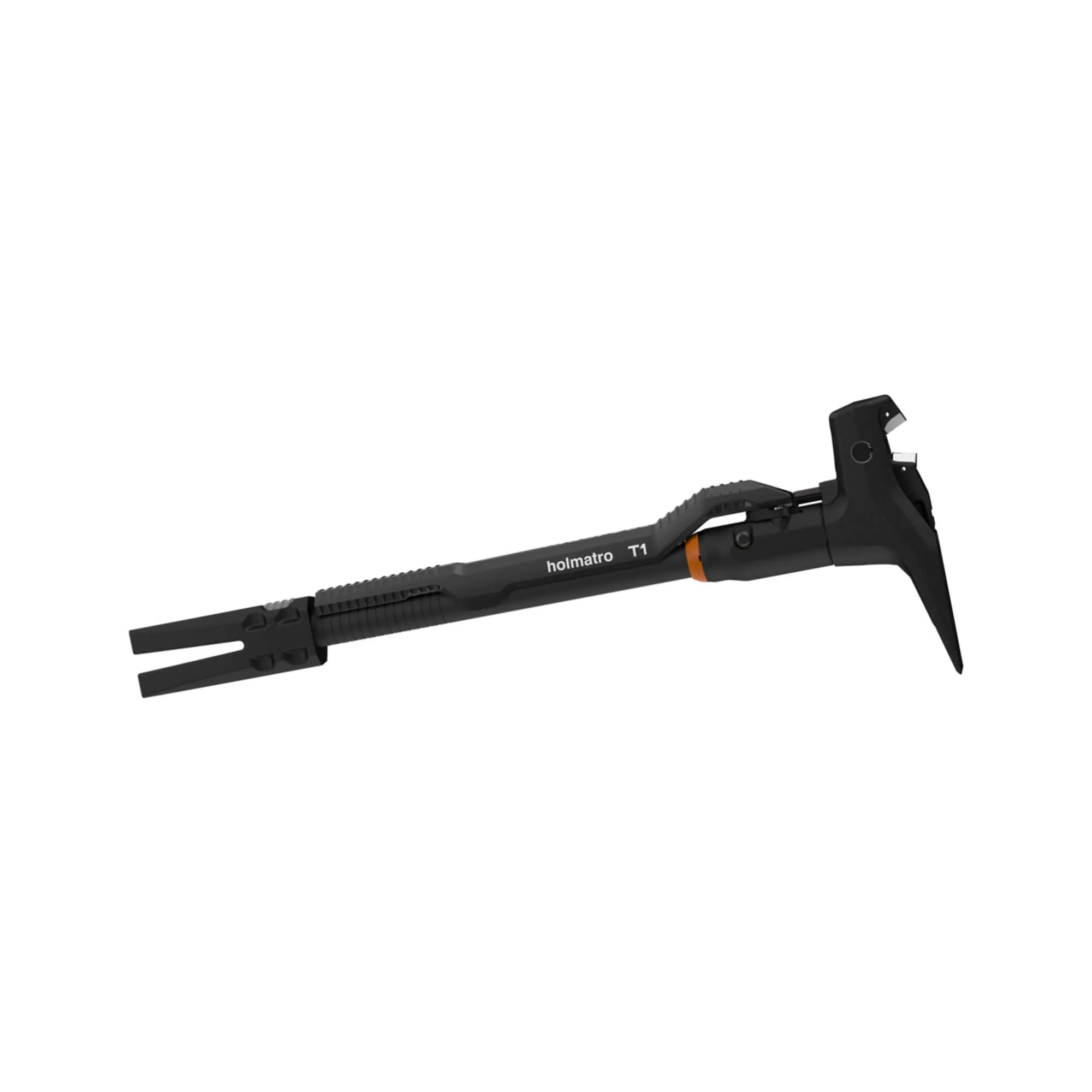

This hydraulic forcible entry tool allows you to cut, wedge, ram, spread, hammer, and lift. With the T1, you always have the right tool for the job.
Multifunctional tool
- The T1 can cut, wedge, ram, spread, hammer, and lift
- This means you always have the right tool for the job. Having all these functions in one tool also saves weight and space in your vehicle
- The T1 is a stand-alone tool, so you won't need batteries or an external pump
Compact and powerful
- The patented hydraulic cutting/spreading mechanism of the T1 allows for high cutting & spreading forces in a compact tool design
- Easy to use in confined spaces
- Easy to carry and store
Detachable Wedge
- You don't need a second person or tool for creating the first gap, which makes forcing heavy inward opening doors a one-person job
- The wedge can also be used for pulling hinges or manually forcing outward opening doors
Spreading tips
- For opening heavy doors in a controlled way
- The load-holding function makes the tool suitable for lifting and progressive lifting
- You can also use the spreading tips to create space in vehicles

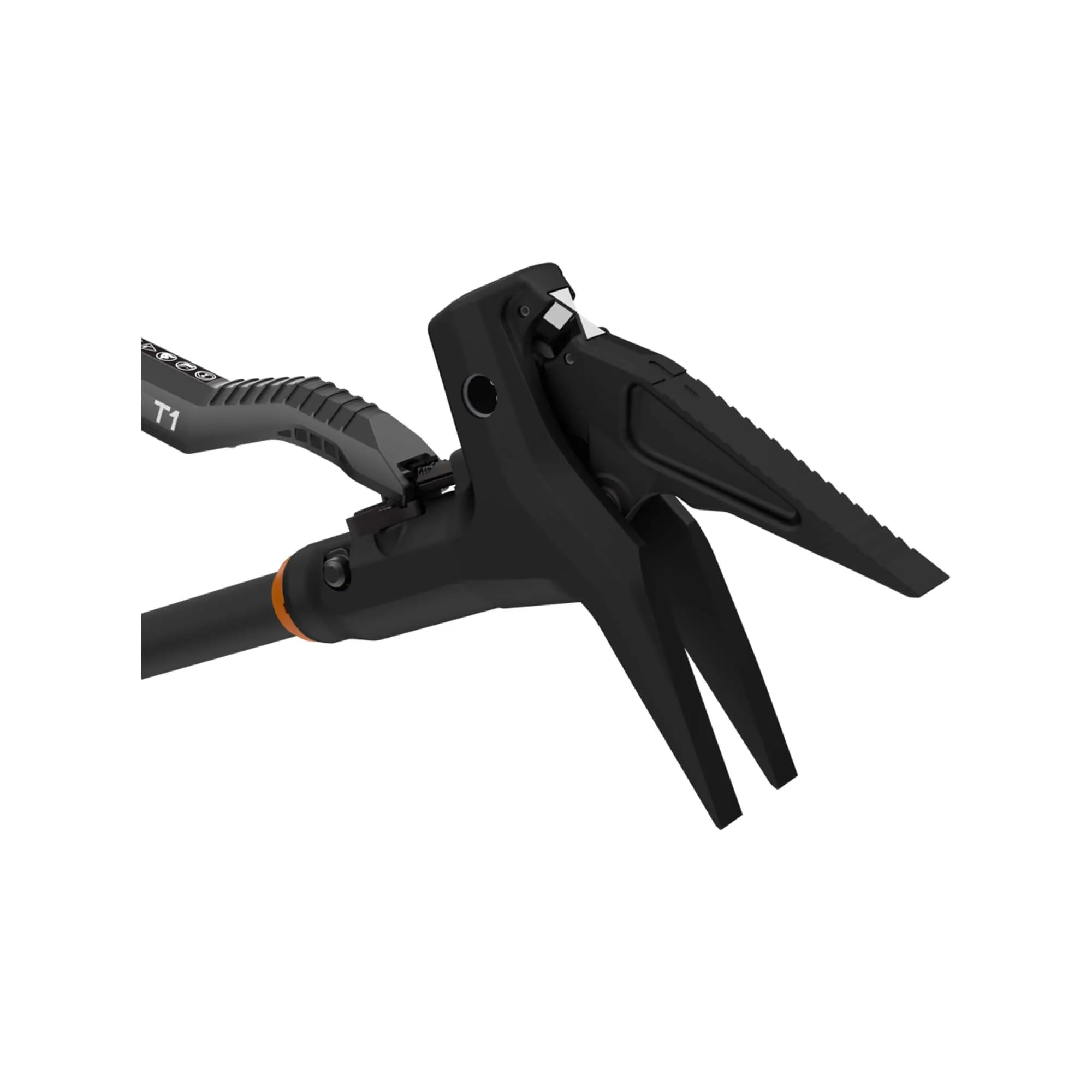

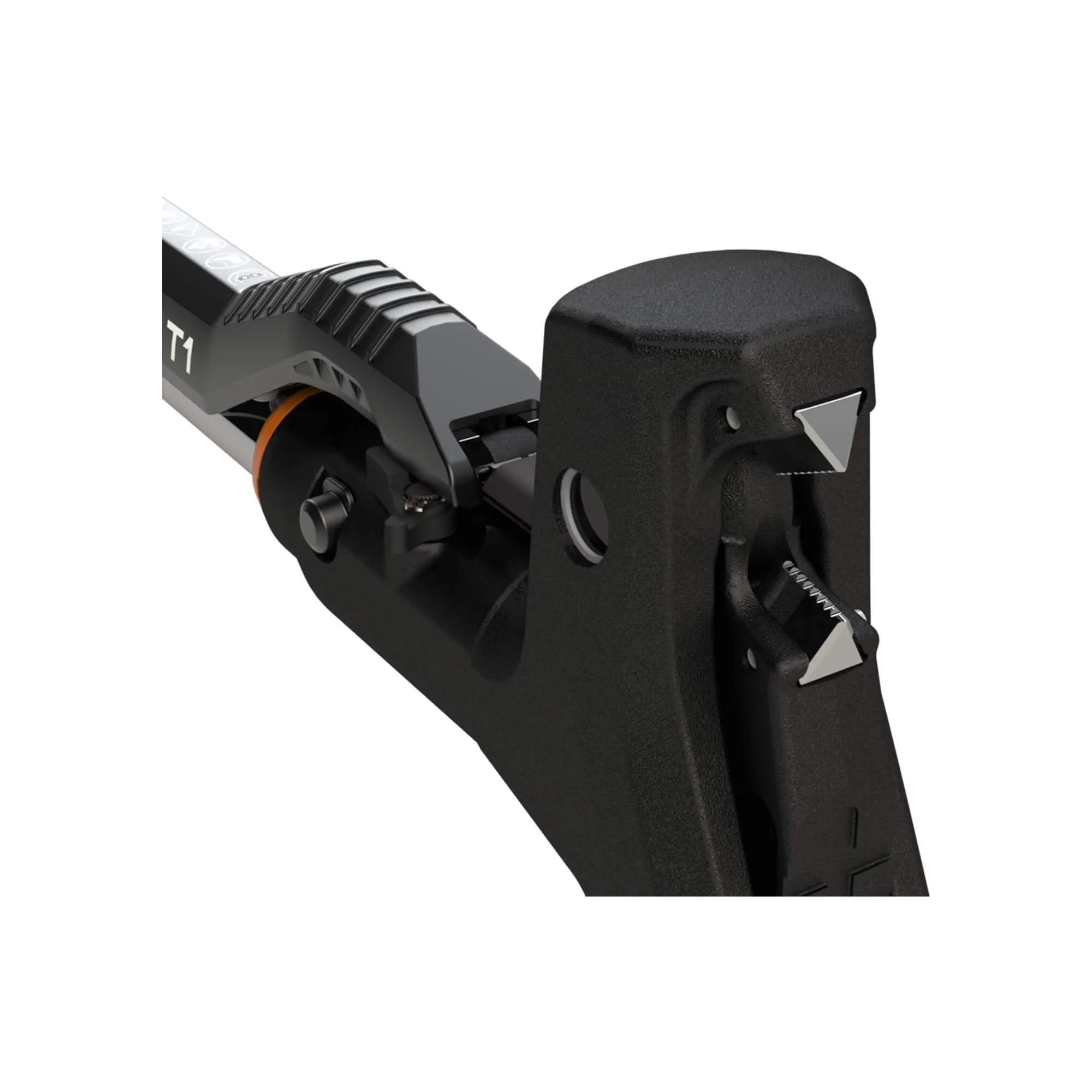

Optimized cutting blades and jaw design

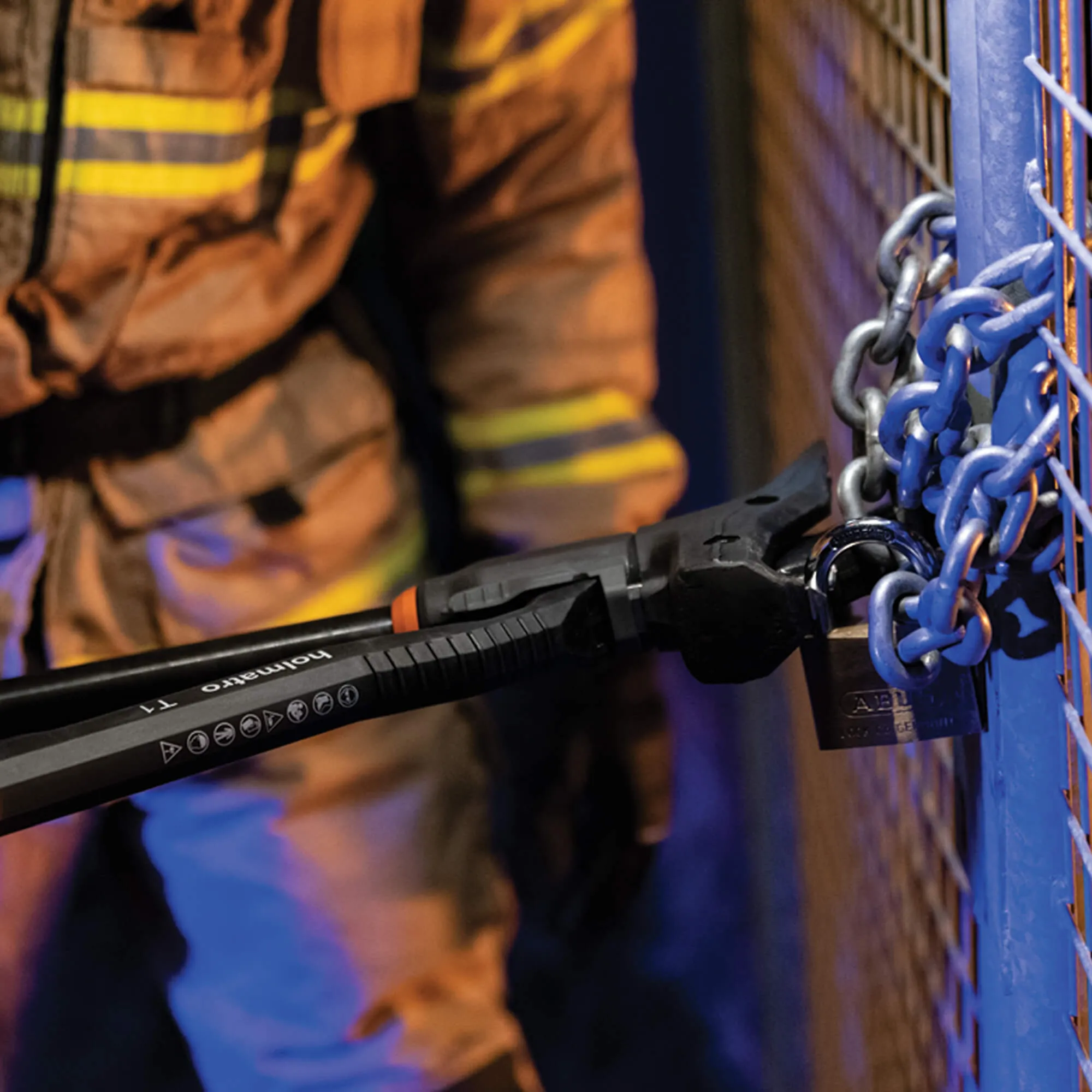

- The T1 can easily cut rebar, chain and padlock
- It can cut up to ø18 mm/0,7 in of round bar (S235)
- You can easily replace the cutting blades when they are damaged
2-stage pump
- High power transmission. 30 kg/66lbs of manual force on the pump rod gives you up to 14.2 ton/31 248 lbf hydraulic cutting force and up to 3.4 ton/7 419 lbf hydraulic spreading force
- You will need less energy or breathing air, compared to traditional tools
Hammer head
- You can use the tool as a battering ram or hammer
- For opening light inward opening doors quickly
- The optimized weight of 7,7kg/17 lbs makes the tool light enough to carry and heavy enough to do the job
Specifications
- Article number: 151.001.787
- model: T1
- max. working pressure: 720 / 72 (bar/Mpa) | 10443 psi
- max. spreading force: 33 / 3.4 (kN/t) | 7419 lbf
- spreading distance: 128 mm | 5 in
- max. cutting opening: 29 mm | 1.1 in
- theoretical cutting force: 139 / 14.2 (kN/t) | 31248 lbf
- min. spreading force 25mm from tip: 5845 lbf
- min. spreading force 25mm from tip: 26 / 2.7 (kN/t)
- operator type: hand
- weight, ready for use: 7.7 kg | 17 lb
- dimensions (AxBxC): 694 x 232 x 62 mm | 27.3 x 9.1 x 2.4 in
- Cutting performance: round bar (S235) 18 mm | round bar (S235) 0.7 in
